Mountain Wedge III
Click Images Below to View Larger

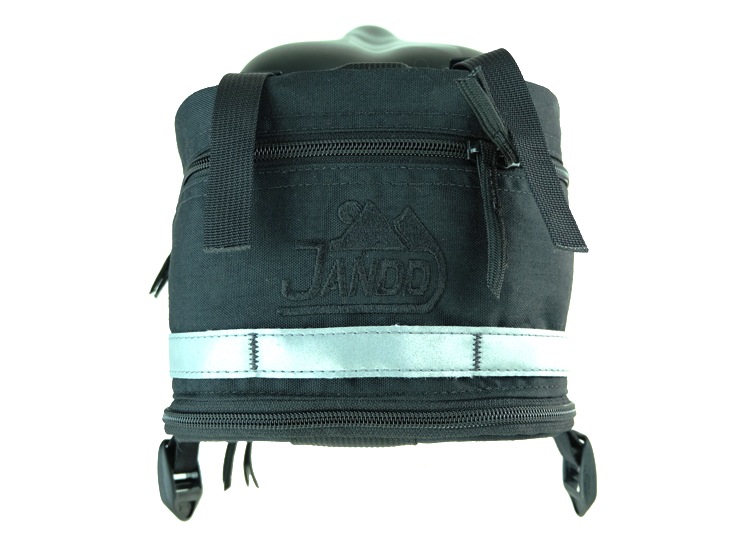

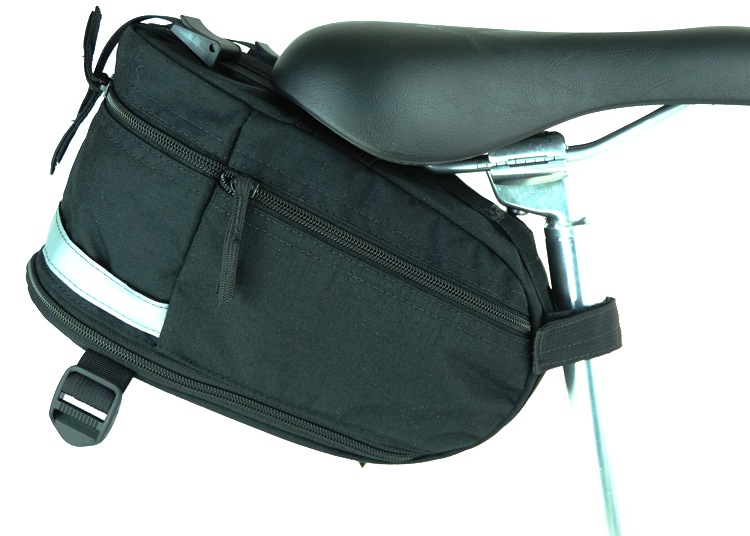

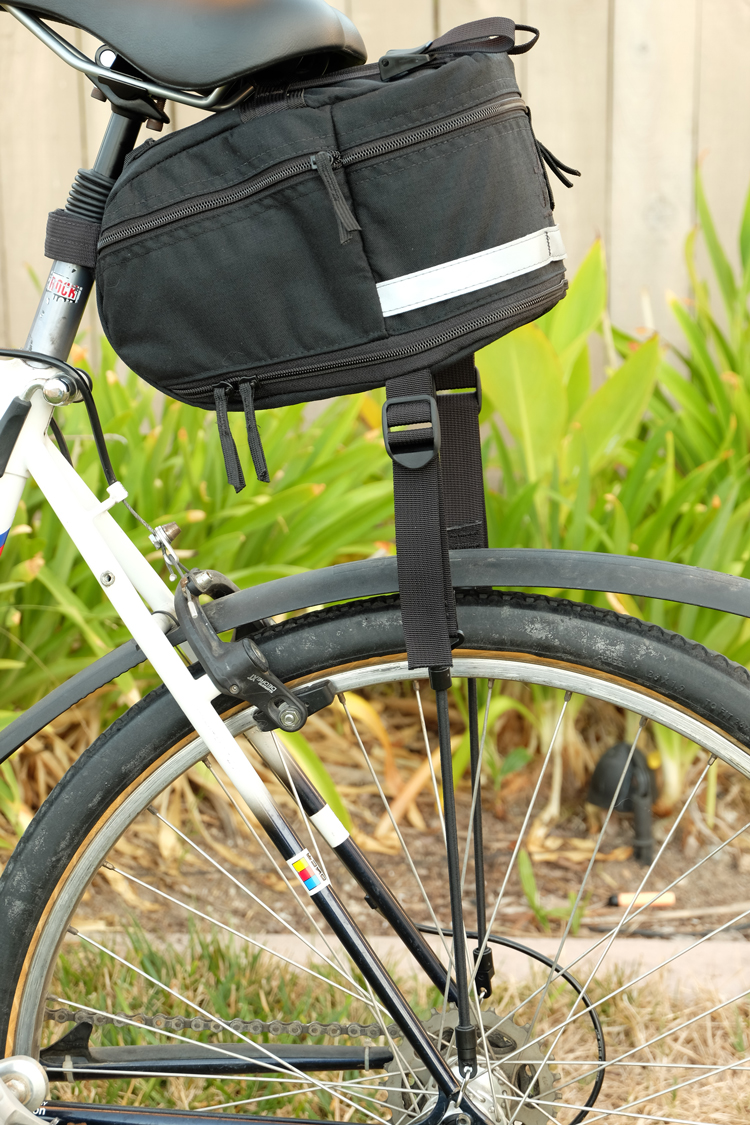

Mtn Wedge III Side w/strapsMtn Wedge III Back w/strapsMtn Wedge III Side ExpandedMtn Wedge III Expanded Side ViewMtn Wedge III Expanded Rear ViewMtn Wedge III Detail Rear ViewMtn Wedge III Detail w/lightMtn Wedge III Detail Side View PortMtn Wedge III Detail Side View StarboardMrn Wedge IIi Adapter

Mountain Wedge III

Product ID: FMW3
Description: The Mountain Wedge III was designed for the rider who needs the capacity of a Jandd Rack Pac but doesn't want to bear the weight and cost of a rack. The five-point suspension starts with a hook-and-loop seat post strap; two webbing and cam buckle straps secure the bag to the seat rails. For added stability, two bungees fix the bottom to the rear braze-ons. There is an HDPE stiffener around the entire bag, and an aluminum alloy stay that runs across the top of the bag to eliminate sag or sway. The two side pockets bellow into the bag for extra room, while maintaining a narrow profile on the outside of the bag.
For more room, the bottom gussets out to increase capacity by 20%. A strip of 2" webbing runs along the center of the bag to prevent tire abrasion should a lowered seat post not clear the tire. This giant among bags carries Jandd's standard stealth zipper heads and 3M Scotchlite Reflective Material visible on three sides, to which a light can be attached.

For More Pictures see:

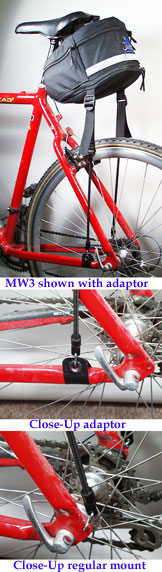

Optional Mountain Wedge III Adapters


Specifications:
Volume:
(Closed) 368 ci/ 6 ltr
(Expanded) 456 ci/ 7.5 ltr
Dimensions:
(Regular) 6 x 11 x 7 (in) 15 x 28 x 18 (cm)
(Expanded) 9 x 11 x 7 (in) 23 x 28 x 18 (cm)
Weight: 15.4 oz/ 440 g
Material: Dupont Cordura®

FAQ: Does this pack have to be mounted with the bungees attached to the chain stay or will the seat post and seat rails be sufficient?
Answer: No, the pack works fine without them.

FIELD NOTES: If you do not have bottom braze-ons, order the Mountain Wedge 3 Adaptors that wrap around the chain-stays.

Spare Parts & Replacement Parts:
Bungee Straps


Price: $90.00
